Roll packaging

Geosynthetic Packaging Machine

Watch the full Geosynthetic Packaging Machine Video by Tentoma about:

  • 4 Ways to reduce PE plast film consumption
  • 100% sealing of roll materials
  • Branding opportunities
  • Ease of machine Operation & Maintenance

Naue Geosynthetics Invest in RoRo StretchPack Machine

The leading manufacturer of geosynthetics in Germany called NAUE GmbH & Co. KG has invested in an XL-S2 machine from Tentoma A/S. The purpose of waterproof packaging for high-value geosynthetic rolls has been a key driver in choosing machinery from Tentoma.

Another driver was to implement a fully automated packaging process in an existing production set-up with limited floor space. The full RoRo StretchPack machine portfolio is characterized by occupying minimal space in the machine length direction. This makes it possible to integrate the machines in existing in-line and off-line packaging areas in an easy way.

NAUE – A RECORD OF INNOVATION:

  • NAUE GmbH & Co. KG has been part of the history of geosynthetics since the very beginning;
  • NAUE introduced the first nonwoven filter material for use in hydraulic engineering applications;
  • Those products are still fully meeting their designated purpose today – for example, on the embankments of the Mittelland Canal, the only East-West waterway in Northern Germany;
  • NAUE of today became an independent company in 1984 under the name of Naue Fasertechnik GmbH & Co. KG.;Tentoma Naue geosynthetics packaging

Geosynthetics | Geomembrane | Geotextile

Product protection of rolls

In this chapter, you will see more examples of the packaging of rolls. But first, let’s look at some of the typical problems we experience that Geotextile manufacturers are struggling with today:

  • Seals on the length of the reels and the ends are opening;
  • Water comes in the reel;
  • The film needs to be as slippery as possible on the outside for storage reasons;
  • Labels don’t stick well on the sides of reels, because of “folds” in the film;
  • Film tears when handling in-stock situations;
  • Branding is not satisfactory;

How to solve Geosynthetics | Geomembrane | Geotextile packaging problems?

Here are some examples of what is possible to solve with the RoRo packaging technology. Watch these 4 examples:

Eye-to-Sky

Horizontal stretch packaging item 10 - Cloth / Tissue material (must be kept moist)
Cloth / Tissue material (must be kept moist)

Example 1

Example 1 is from a customer in Spain that has requested to encapsulate 100% the product. The reason is that the cloth needs to maintain a controlled state of moisture level.

Note: Quite the opposite really of what is normally the task in packaging. With RoRo you can keep moisture in or out.

Example 2

Example 2 is not only to show a potential customer that the rolls are 100% tight but also to enable a test of:

  1. Film has high enough tear and puncture resistance to withstand normal logistic handling of geotextile rolls
  2. Insertion of plugs in the end while ensuring 100% tight packaging

Eye-to-Wall

Geosynthetics-packaging

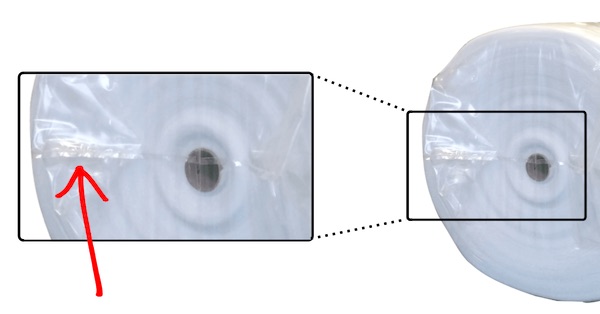

Example 3 – Close-up of a strong and controlled sealing!

Geosynthetics-packaging

Eye-to-Wall

Large roll "eye to wall" textile matrial
Large roll "eye to wall" textile matrial

Example 4

Example 4 will show you that rolls can have up to 8 meter lengths. Watch This 40 Second packaging sequence of an automated geotextile packaging process.

Product Protection of Outdoor Stored Products

Outdoor storage of products is a topic Tentoma is receiving positive feed-back since the high quality film material applied in RoRo machinery allows safe outdoor storage of up to 24 months.

The film can be specified with UV protection and UV blocking in order to protect the film and the goods.

Besides protecting the goods from moisture, contamination, dust and alike the film also has excellent capabilities in being a low-friction film. When products are stored tightly together (e.g. geotextile rolls) it is a requirement that the film doesn’t get damaged when placing and removing the products.

Easy transport due to low friction between goods and thus no sticking
Low friction film (COF < 0,2)

Geosynthics-packed-on-pallet-288x300

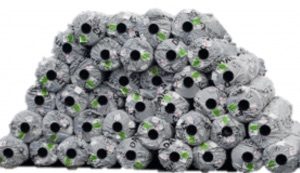

Geosynthetics-eye-to-wall-rolls-300x173

Lower friction between products makes handling easier (gliding)
Low friction film is a clear advantage in transport and storage handling when products are placed tightly together

Automation in packaging – Geotextile and Geomembrane

Drawing Duplex D2

The geotextile industry sees innovative automation in packaging
Automation in packaging in the geotextile and geomembrane industry is now seeing an innovative move by Frank Bruhn ApS. The proven horizontal stretch packaging technology - RoRo StretchPack - originates from decades of experience in the vertical stretch hood industry.  Frank Bruhn ApS is now introducing a rock solid value proposition to the textile manufacturing industry as well as for geotextiles, fabrics, membranes including geomembranes when it comes to automation in packaging? See the short video and learn how!

Geotextile and Geomembrane WEBINAR
Are you interested in more details ? Then please drop an e-mail to bbj@tentoma.com and you will receive an invitation to our upcoming webinar about going from manual packaging of textile, various, fabrics, geotextile, membranes, geomembrane in rolls and alike to a fully automated packaging process.

Savings in packaging of geotextiles
The savings are attractive in respect to considerable plastic packaging material (PE-film) savings, FTE reduction and on top of that? With the RoRo StretchPack horizontal packaging equipment you get a 100% water resistant packaging.

100% water resistant geotextile packaging
One challenge in the textile industry is to succeed with a packaging that doesn't need to be overpacked in order be 100% water resistant which is critical in order to keep the rolls and alike fully intact. With RoRo StretchPack you obtain a 100% water resistant packaging (6-side closed) in a maximum 40 seconds automated packaging process with a minimal use of packaging material.

Drop an e-mail right away to bbj@tentoma.com and you will be invitated for our
Geotextile and Geomembrane WEBINAR

Automated Packaging of Geotextile or Geomembrane Roll
Horizontal Stretch Packaging - Automated Packaging Solution
